STANDARD

Wood

Natural

PREMIUM

Oak Wood

Brown

Puit

Black

Metropol Wood PPQQO

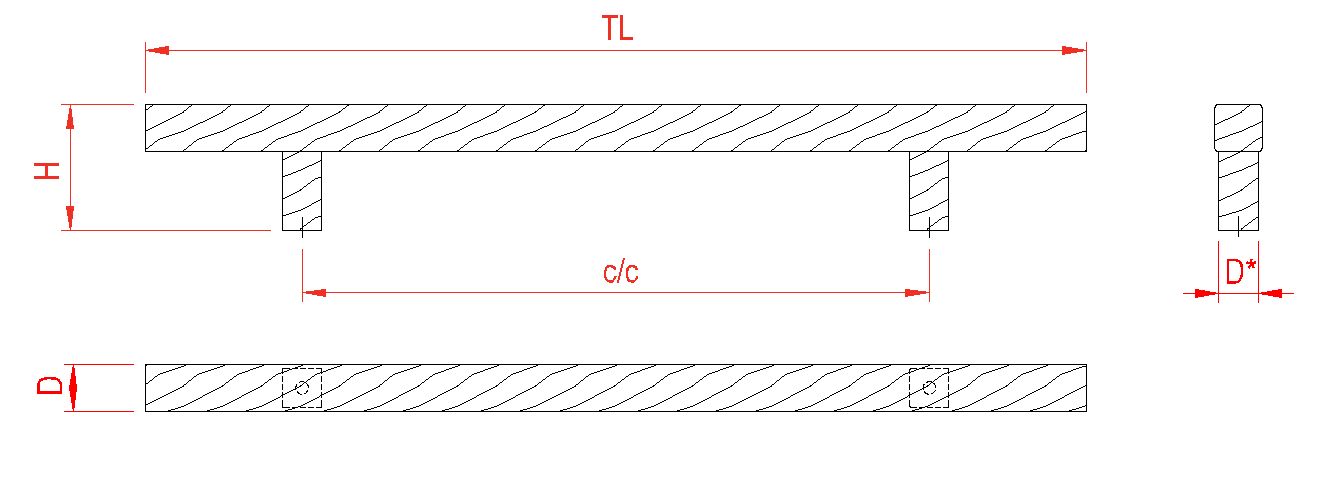

CODE D D* H c/c TL
PPQQO-400/30 30×30 25×25 80 400 600
PPQQO-600/30 30×30 25×25 80 600 800
PPQQO-600/40 40×40 35×35 90 600 800
PPQQO-800/40 40×40 35×35 90 800 1000
PPQQO-1000/40 40×40 35×35 90 1000 1200
PPQQO-1200/40 40×40 35×35 90 1200 1400
PPQQO-1400/40 40×40 35×35 90 1400 1600



Orders are possible with custom c/c mm specification.

×

Download handles as BIM objects

Our products are available as BIM objects in the digital construction materials catalogue ProdLib.

ProdLib is a product catalogue for architects, designers and engineers where you can download BIM and CAD models enriched with technical specifications of construction materials.

ProdLib can be interfaced with AutoCAD, AutoCAD LT, Revit and ArchiCAD, which allows you to drag and drop completed models directly into the design software. Downloading and using ProdLib is free.

Use the web version or download our BIM product catalogue.

A video guide to installing and using the catalogue can be found here.

×

Example of placing a query or order for five pairs of Classic K4
handles with answers to six questions:

  1. Model K4
  2. Centre-to-centre spacing between fasteners 600
  3. Handle diameter 25
  4. Surface finishing B – matte/buffed or P- mirror/polished
  5. Fastening M,V,S,O,K,X,A
  6. Door thickness in mm conforms to the bolt codes  1,2,3,4,5,6

Result: K4-600/25BO5
Quantity: 5 pairs

Following these instructions ensures more efficient and accurate filling of orders.
To place an order, contact us via email rene@diamantek.ee or by telephone on +372 53452241.
